Aim Mxm Compact Dash Data Logger

The Aim MXm Compact Dash Data Logger provides all the info needed by racers. It samples and shows key info like speed, lap times, RPM, gears, it has a 9 axis inertial platform, multiple math channels and much more. Its strengths are the compactness, which makes MXm perfect to be fit into any kind of car and bike and its plug-and-play usage is complete but simple. The MXm is the perfect device for both Pro and Amateaur racers.

A wide range of data sources

MXm samples data coming from your ECU, the internal GPS, the inertial platform (accelerometer, gyro and magnetometer), 4 fully configurable analog inputs, 3 digital inputs (2 speed inputs + 1 coil RPM input) and predefined math channels.

For the most demanding, the system can be connected to the Lambda controller and to the SmartyCam HD in order to obtain the full Aim experience.

Integrated shift lights and alarms

MXm features a 5 LED shift light array. Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your liking, and for each unique gear when required. The MXm also features two fully configurable RGB alarm LEDs: you can choose the conditions which turn them on/off, their color, select a solid alarm - or flashing one - and the flashing frequency.

Two power outputs

MXm features two power outputs that can drain up to 15 A each.The two power outputs can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fanor circulation pumps, etc. when a certain event happens.

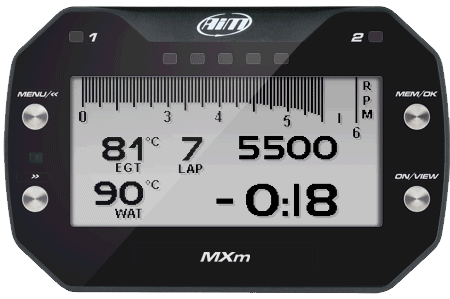

Sharp Liquid Crystal

MXm features a high contrast LCD display, with an outstanding black to white ratio. The wide 268x128 pixels graphical LCD offers great flexibility in information display and alerts. An ambient light sensor keeps the backlight at optimum brightness levels.

The screen can be backlit in one of the seven available colors:

Data recall on screen

At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures.
