Aim Mxs 1.2 Compact Data Logger

Aim Mxs 1.2 Compact Data Logger
Tags: AIM , MXS , 1.2 , COMPACT , DATA , LOGGER
Aim Mxs 1.2 Compact Data Logger
Aim Mxs 1.2 Compact Data Logger The MXS 1.2 is the evolution of MXS, is the dash logger designed to ... Read More
  • Brand: AIM
  • SKU: MXS-C-GPS-M

Variations Of This Product

Aim Mxs 1.2 Compact Data Logger Gps Module 50cm Cable None
£2,328.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Module 1.3m Cable None
£2,328.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Module 1.3m Cable Mxs Harness 22 Pin Connections
£2,676.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Module 2m Cable None
£2,328.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Module 2m Cable Mxs Harness 22 Pin Connections
£2,676.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Module 4m Cable None
£2,328.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Module 4m Cable Mxs Harness 22 Pin Connections
£2,676.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Roof Version With 2m Cable None
£2,328.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Roof Version With 2m Cable Mxs Harness 22 Pin Connections
£2,676.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Roof Version With 4m Cable None
£2,328.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Roof Version With 4m Cable Mxs Harness 22 Pin Connections
£2,676.00
Not In Stock ETA: 2-5 Working Days
Add to Cart
Aim Mxs 1.2 Compact Data Logger Gps Module 50cm Cable Mxs Harness 22 Pin Connections
£2,676.00
Not In Stock ETA: 2-5 Working Days
Add to Cart

Availability: ETA: 3-10 Working Days

from
£2,328.00

CHOOSE YOUR OPTIONS

Price :
£2,328.00

Aim Mxs 1.2 Compact Data Logger

The MXS 1.2 is the evolution of MXS, is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog / digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 5? display has been specifically designed for installation in small cockpits.

The MXS 1.2 is also available in its STRADA version - A dash logger for road use which is also available as an IVA approved kit. more info

MXS 1.2 is also available in its STRADA version

CAN Output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

A Wide Range of Data Sources

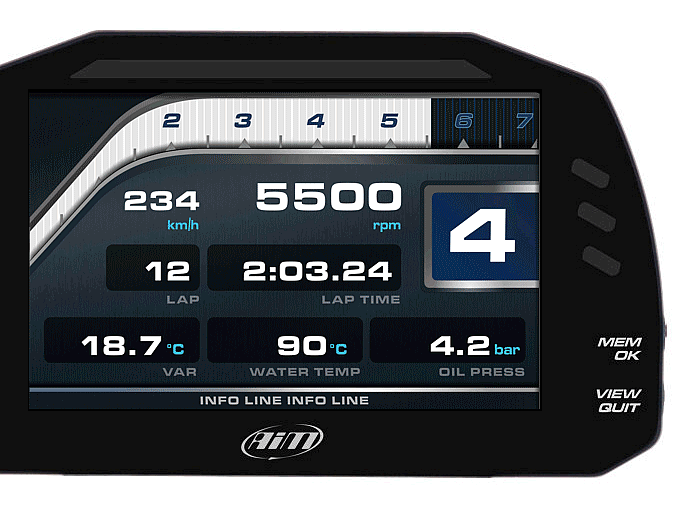

Freely Configurable Pages

You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.
Freely Configurable Pages

High Contrast TFT Display

A high contrast TFT display identifies MXS 1.2 at the first glance. An ambient light sensor keeps the back-light at optimum brightness levels.
High Contrast TFT Display

Flexible Alarms

MXS 1.2 features six configurable RGB alarm LED?s. You choose the conditions, you choose the colours. Select a solid alarm or flashing alarm along the flashing frequency. Choose to have an accompanying text message and set the alarm priorities.

Flexible Alarms

Two Digital Outputs

Aim MXS features two digital outputs. Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
more info

More Info

Supplier Stock Level
Stock 0.0000
Supplier OOS Lead Time
Supplier Lead Time
Manufacturer AIM
Fitment See Title
Colour N/A
Note N/A
