Aim Sb12v5200p-bc Super B Motorsport Lithium Race Car Battery

SB12V5200P-BC Super B Motorsport Lithium Race Car Battery is aLightweight Lithium Ion starter battery, 1.874 lb / 850 gm, specially developed for Motorsport.

Safety

super B batteries are based on Lithium Iron Phosphate technology (LiFePO4). This Lithium Ion technology used in super B batteries is the safest Lithium Ion technology available today. On top of that our bespoke casing and electronics further increase safety and durability.

F.I.M. / Stock Racing

The F.I.M. modified the regulations for stock racing regarding battery use.
Article 2.7.9.5 Battery: The Battery may be replaced. If replaced, its nominal capacity must be equal to or higher than the Homologated type. The F.I.M. has approved the super B battery for use as replacement battery.

Use

Please take the following advice below into account while using the battery.

1. Do not jumpstart.
2. Use correct charger.
3. Make sure the battery does not get deeply discharged. If the battery has no charge remaining when you check it, consider it to be damaged. Do not attempt to recharge or use it.
4. This battery is specially developed for Motorsport. If you want to use it on road, please consult Super B.

Applications

• up to 1000cc 4 stroke
• up to 300cc 2 stroke
• Yamaha, Honda, Suzuki, BMW, Super Bike 1000cc, all models
• JetSki
• KTM 300 EXC 2 stroke, all models
• All 450 Enduro bikes
• All 450 Dirt bikes
• All 450 ATV's
• Yamaha, Honda, Suzuki, Super sport 600cc, all models

Technical specifications

SKU/EAN13 8718531360013
Battery Designation : 4IFP63/115/85-2
Height (mm): 83,50 / 84,50
Diameter (mm): NA
Width (mm): 113,50 / 114,50
Thickness (mm): 61,50 / 62,50
Nominal voltage (V): 13,2V
Charge method: CCCV
End of charge voltage (V): 15,2V
End of charge voltage (V) for endurance (cycle life): 14,4V
Charge current (A): 20A (4C)
Charge current (A) for endurance (cycle life): 6A (1C)
End-of-discharge voltage (V) :8V
?End-of-discharge voltage (V) for endurance (cycle life): 10V
Discharge current (A): 140A (30C)
Discharge current (A) for endurance (cycle life): 4,6A (1C)
Discharge pulse current (A) (10 seconds): 240A (52C)
Discharge pulse current (A) (1 second): 300A (65C)
Discharge performance at 20 øC (rated capacity): 4,6Ah / 60,72Wh
Discharge performance at ?20 øC (capacity): 4,14Ah / 54,648Wh
High rate discharge performance at 20 øC (capacity): 4,37Ah / 57,684Wh
EqPb (Equals Lead acid battery): 10 to 12Ah
Operating temperature range: -30øC to +60øC
Storage temperature range: -50øC to +60øC
Weight: 0,850kg

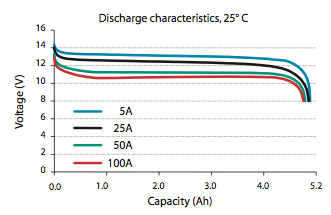

Performance
